Key Encoders

Modified on: Wed, 19 Oct, 2022 at 8:59 AM

Applies to:          Stayntouch PMS

Key Encoders


To connect Stayntouch Guest Kiosk to network-based key encoders, they must first be configured in Stayntouch Guest Kiosk.

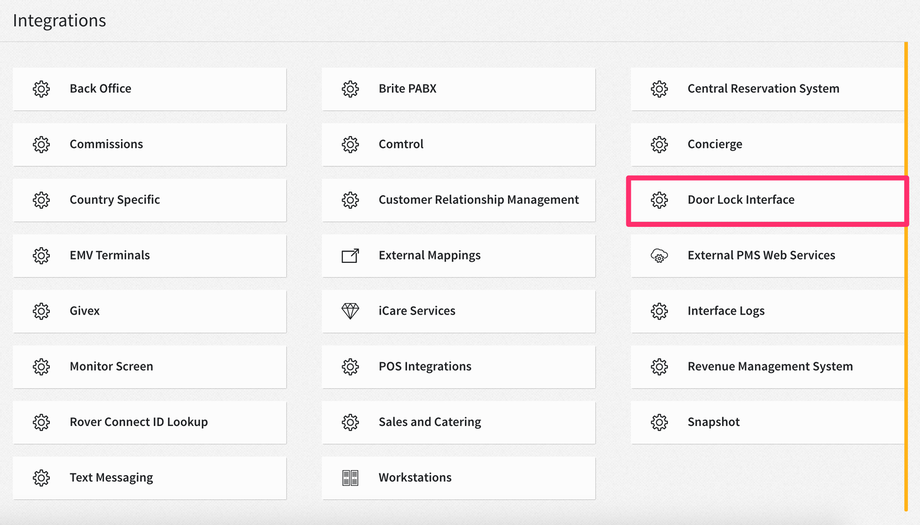

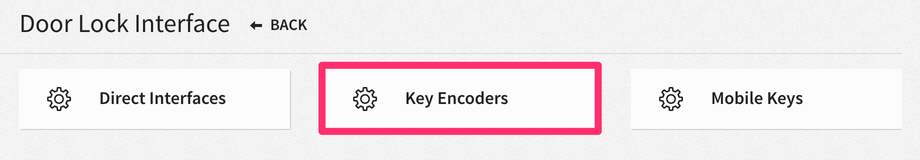

Navigate to Settings > Integrations > Door Lock Interface > Key Encoders.

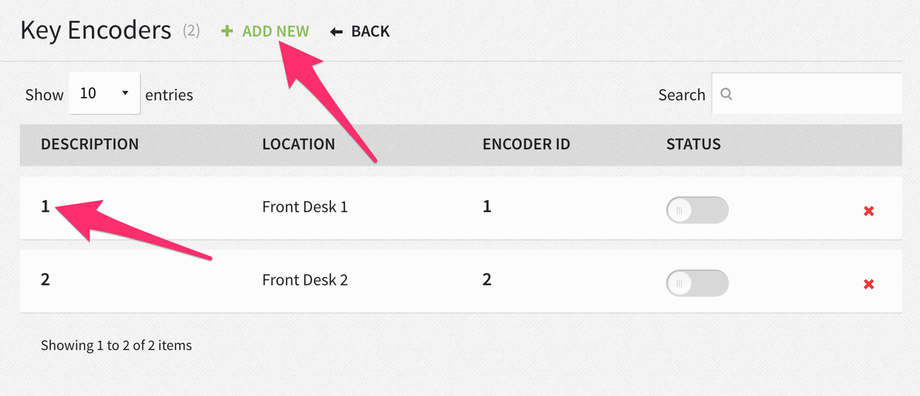

On the Key Encoders screen, you can edit existing encoders by clicking the DESCRIPTION, or you can click + ADD NEW at the top of the screen.



Your Stayntouch implementation specialist will assist you in configuring key encoders where necessary.

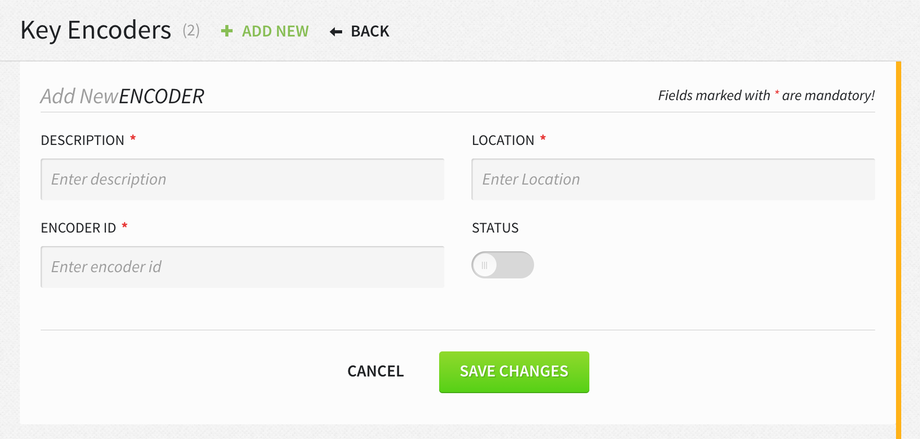

  • The DESCRIPTION should be a reference that allows you to recognize the specific device.
  • The LOCATION is another reference to help identify the specific device.
  • The ENCODER ID must match the settings in your Door Lock Interface.

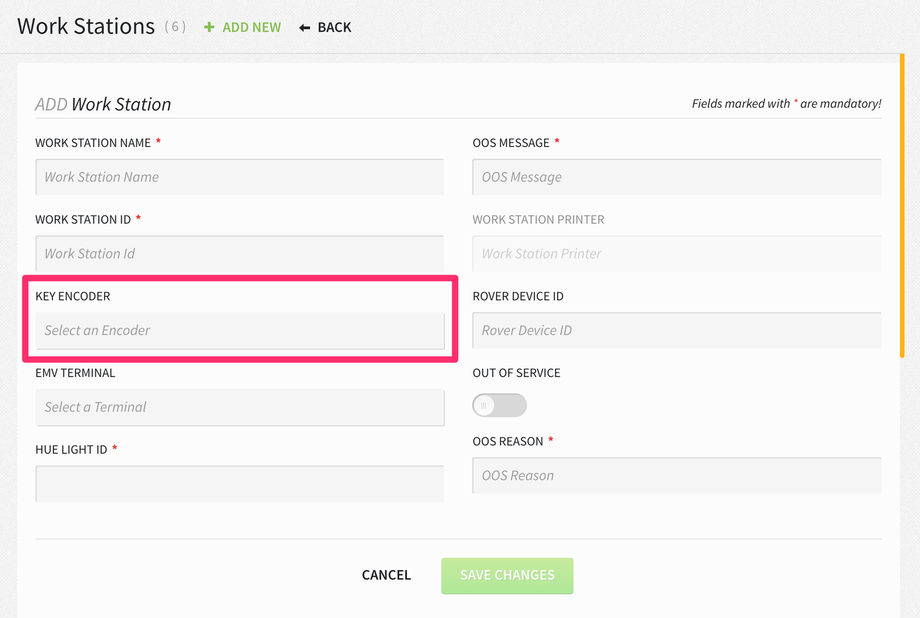

Once you have key encoders configured, return to Settings > Integrations > Utilities > Workstations and set the KEY ENCODER assigned to each workstation.




Save your changes and visit the additional articles in the Workstations series to learn about the additional workstation fields.
